Heat Shrinkable Termination Kit Kit 11kV To 66/72.5kV
2000 INR/Set
Minimum Order Quantity : 01 Sets
Call us now
07971550149Heat Shrinkable Termination Kit Kit 11kV To 66/72.5kV Price & Specifications
Weight Varies as per kit
Voltage 11kV To 66/72.5kV
Usage & Applications Medium & High Voltage Power Distribution, Switchgears, Transformers, Substations
Tensile Strength >12MPa
Storage Temperature -10C to 40C
Size As per cable size (11kV - 66/72.5kV)
Shield Material Semi-conducting Layer, Copper Mesh
Rated Temperature -40C to 105C
Product Type Heat Shrinkable Termination Kit
Operating Temperature -40C to 105C
Number of Conductor 1 Core, 3 Core (as required)
Material Cross Linked Polyolefin, Mastic & Stress Control Tubes
Locking Type Push fit/Slip fit (Depends on application)
Length Custom as per cable size
Jacket Material Heat Shrinkable Polyolefin
Jacket Color Red / Black, Red / Black, Red / Black, Red / Black
Insulation Material Cross Linked Polyolefin (XLPO), Polyolefin, Cross Linked Polyolefin (XLPO), Polyolefin, Cross Linked Polyolefin (XLPO), Polyolefin, Cross Linked Polyolefin (XLPO), Polyolefin
Insulation XLPO / Polyolefin
Install Type Outdoor/Indoor Cable Termination
Impedance ---
Features UV Resistant, Weatherproof, High Dielectric Strength, Excellent Insulating Performance, Easy Installation, Flame Retardant, Resistant to Tracking
Dimension (L*W*H) As per kit size & cable specification
Dielectiric Strength >24kV/mm
Diameter As per cable conductor diameter
Core Number Single or Multi-core
Core Material Copper / Aluminum
Connector Color Copper / Tinned
Conductor Type Multi-stranded or Solid
Conductor Shape Circular or Sectoral
Conductor Material Copper or Aluminum as per cable
Color Red, Black, Custom
Cable Type High Voltage XLPE / EPR Insulated Power Cable
Armored Material Steel Tape or Wire (as per cable)
Application Indoor and Outdoor Cable Termination, Indoor and Outdoor Cable Termination, Indoor and Outdoor Cable Termination, Indoor and Outdoor Cable Termination
Payment Terms Cash Against Delivery (CAD)
Packaging Details box
Main Export Market(s) Western Europe, South America, Eastern Europe, Africa, Middle East, Asia, Australia, Central America, North America
Main Domestic Market All India
Certifications as per IS
About Heat Shrinkable Termination Kit Kit 11kV To 66/72.5kV Detail
Heat Shrinkable termination kits to comply with National India Standard 13573 Part 2 (2011) with latest amendment, IEC 60502, and HD 629.1. Termination kits are use for connection to transformers, panels, poles and switchgears terminals. Termination kits are two type for Indoor and for Outdoor Application and their further diversification on the basis of cable type, Number of cable cores. Our product range is upto 72kV.
Superior Electrical Insulation for Reliable Power Delivery
This termination kit provides outstanding electrical insulation and mechanical protection for medium and high voltage cable terminations. Designed to perform in harsh climatic conditions, it guarantees uncompromised reliability across a temperature range from -40C to 105C, ensuring safety and durability for your critical power infrastructure.
Comprehensive Kit with User-Friendly Installation

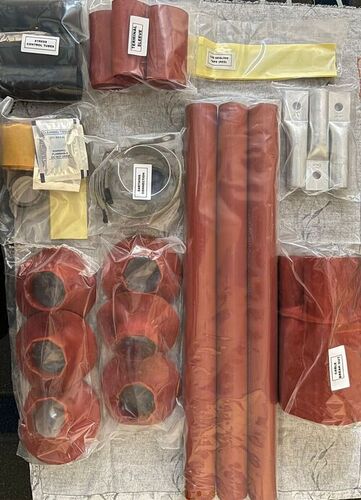

Each termination kit is supplied with all necessary installation components, including easy-to-apply heat shrink tubing, mastic, and cleaning materials. The process is straightforward; detailed manuals guide installers step-by-step, minimizing installation time and reducing the risk of errors for both indoor and outdoor terminations.
Industry-Leading Standards and Robust Construction
Conforming to IEC 60502-4 and IS 13573, these kits are built from premium cross-linked polyolefin, delivering excellent resistance against tracking, erosion, UV exposure, and environmental stress. With flame-retardant and moisture-resistant properties, the kits ensure long-lasting performance and safety even in challenging environments.
Features
- Excellent performance in field.
- Continuous operational temperature-55oC to 120oC.
- Types tested with national and international standard.
- Cost Effective, easy to install and user friendly.
- Corrosion resistant and unlimited shelf Life.
Superior Electrical Insulation for Reliable Power Delivery
This termination kit provides outstanding electrical insulation and mechanical protection for medium and high voltage cable terminations. Designed to perform in harsh climatic conditions, it guarantees uncompromised reliability across a temperature range from -40C to 105C, ensuring safety and durability for your critical power infrastructure.
Comprehensive Kit with User-Friendly Installation
Each termination kit is supplied with all necessary installation components, including easy-to-apply heat shrink tubing, mastic, and cleaning materials. The process is straightforward; detailed manuals guide installers step-by-step, minimizing installation time and reducing the risk of errors for both indoor and outdoor terminations.
Industry-Leading Standards and Robust Construction
Conforming to IEC 60502-4 and IS 13573, these kits are built from premium cross-linked polyolefin, delivering excellent resistance against tracking, erosion, UV exposure, and environmental stress. With flame-retardant and moisture-resistant properties, the kits ensure long-lasting performance and safety even in challenging environments.
